MK03-1A66B-500W | Standex Electronics
Reed switche, magnet, built-in mounting, 1 Form A (N/O), 10 W, 180 V (DC), 0.5 A, MK03-1A66B-500W
Unit Price (€ / pc.)
4.4506 € *
Available: 213 pcs.
Total Price:
4.45 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4506 €
10 pcs.
3.9151 €
100 pcs.
3.4391 €
250 pcs.
3.3082 €
1000 pcs.
3.0940 €
*incl. VAT plus shipping costs
Subject to prior sale
Reed sensor, MK03-1A66B-500W, Standex Electronics

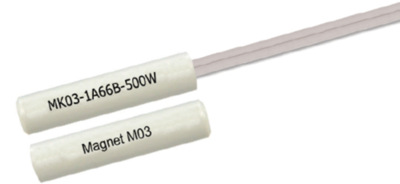

The MK03-1A66B-500W is a panel mount (5.75mm) reed sensor supplied in a cylindrically shaped housing with cable terminals. Optional internal switch, cable, length, and termination. UL Approval.
Applications
- Door and window control
- With magnetic floats for water level detection
- Position sensing
- Appliance
- Industrial
- Security
Technical specifications
| Filter | Property | Value |
|---|---|---|

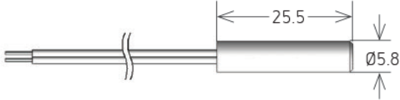

| diameter | 5.8 mm | |
| Switching Voltage (DC) | 180 V | |
| Length | 25.5 mm | |
| Assembly | built-in mounting | |
| Latching switching function | 1 Form A (N/O) | |
| switching current | 0.5 A | |
| Breaking capacity | 10 W | |
| Detecting distance | 15 mm | |
| Connection | stranded wires | |
| Product type | reed sensor | |
| Contact resistance | 150 mΩ | |
| Version | magnet |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
