KSK-1C90U-2034 | Standex Electronics
Reed switche, PCB mounting, 1 Form C (NO/NC), 20 W, 175 V (DC), 1 A, KSK-1C90U-2034
Unit Price (€ / pc.)
1.8802 € *
Available: 1,186 pcs.
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.8445 €
100 pcs.
1.7969 €
500 pcs.
1.7493 €
1000 pcs.
1.6779 €
*incl. VAT plus shipping costs
Subject to prior sale

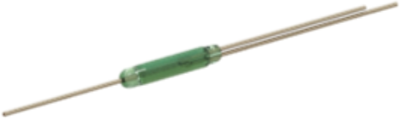

Reed switch, KSK-1C90U-2034, Standex Electronics

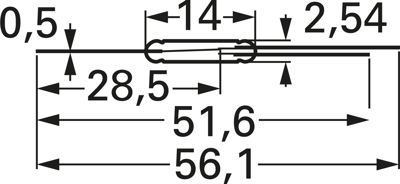

The KSK-1C90U-2034 is a miniature (Form C) changeover reed switch or single pole double throw (SPDT) reed switch. Glass length of 14.0 mm and diameter of 2.54 mm. Rated power 10 W, Switching voltage 175 VDC, Switching current 0.5 Amp DC. Most used, UL approval.
Features
- SPDT Changeove
- Miniature
Applications
- Door detector
- Tampering switch
- Counter
- Automotive
- Test and measurement
- Safety
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 2.54 mm | |
| Switching Voltage (DC) | 175 V | |
| Connection | axial | |
| Latching switching function | 1 Form C (NO/NC) | |
| switching current | 1 A | |
| Length | 56.1 mm | |
| Product type | reed switche | |
| Assembly | PCB mounting | |
| Contact resistance | 150 mΩ | |
| Breaking capacity | 20 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
