KSK-1A52-2030 | Standex Electronics
Reed switche, PCB mounting, 1 Form A (N/O), 50 W, 350 V (DC), 0.5 A, KSK-1A52-2030
Unit Price (€ / pc.)
2.1896 € *
Available: 321 pcs.
Total Price:
2.19 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1896 €
25 pcs.
1.9873 €
100 pcs.
1.9040 €
250 pcs.
1.8445 €
1000 pcs.
1.7612 €
*incl. VAT plus shipping costs
Subject to prior sale

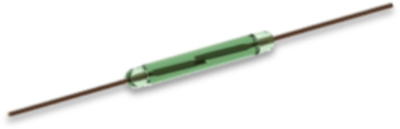

Reed switch, KSK-1A52-2030, Standex Electronics

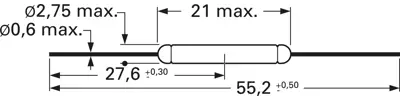

The KSK-1A52-2030 is a high breakdown voltage reed switch with glass length of 21.0 mm and diameter of 2.75 mm. Rated power 50 W, Switching voltage 350 VDC, Switching current 0.5 Amp DC.
Features
- High power
- Line voltage
Applications
- Position sensor
- Valve detection
- Level sensor
- Automotive
- White goods
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | reed switche | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 50 W | |
| Switching Voltage (DC) | 350 V | |
| switching current | 0.5 A | |
| Contact resistance | 150 mΩ | |
| Assembly | PCB mounting | |
| Connection | axial | |
| diameter | 2.75 mm | |
| Length | 21 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
