68.9517-02521 | Stäubli Electrical Connectors

Measuring lead with (2 mm banana plug, angled) to (crocodile clip), 0.25 m, black, silicone, 0.5 mm², CAT III, CAT IV, 68.9517-02521

Order No.: 86F9392
EAN: 4099891760649
MPN:
68.9517-02521
GM284 0,25M SCHWARZ
Series: HF

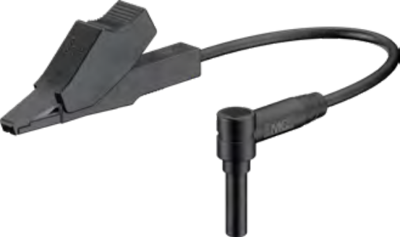

68.9517-02521 Stäubli Electrical Connectors Test Leads Image 1

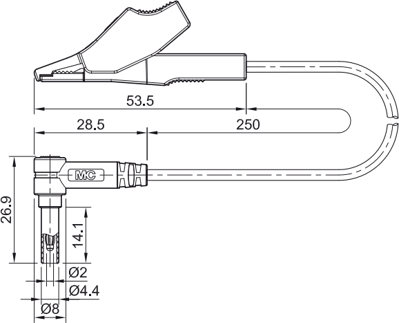

68.9517-02521 Stäubli Electrical Connectors Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
8.7227 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
8.72 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7227 €
10 pcs.
7.9730 €
50 pcs.
7.4732 €
100 pcs.
6.9734 €
500 pcs.
6.4736 €
*incl. VAT plus shipping costs
Subject to prior sale

Reference lead, 68.9517-02521, Stäubli Electrical Connectors

Highly flexible reference leads with insulation in PVC or silicone. One end with right angled Ø 2 mm plug with rigid insulating sleeve, other end with crocodile clip with allround insulation and toothed gripping jaws with fine-wire clamping surface.

Technical specifications
Filter Property Value
Cable length 0.25 m
Colour black
Cable cross-section 0.5 mm²
Stackable No
Connection (2) crocodile clip
Touch safe No
Material silicone
Rated Voltage 1000 V/600 V
Connection (1) 2 mm banana plug, angled
Rated current 10 A
Rated category CAT III, CAT IV
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
