68.9444-01521 | Stäubli Electrical Connectors

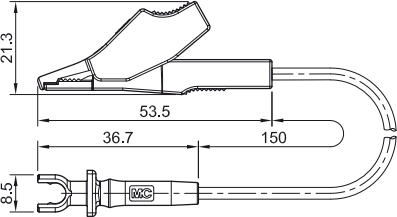

Measuring lead with (fork plug, straight) to (crocodile clip), 0.15 m, black, silicone, 0.5 mm², CAT II, 68.9444-01521
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.1269 € *
Available in 10 days: 10 pcs. - if ordered today
Total Price:
10.13 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1269 €
10 pcs.
9.2582 €
50 pcs.
8.6870 €
100 pcs.
8.0920 €
500 pcs.
7.5208 €
*incl. VAT plus shipping costs
Subject to prior sale

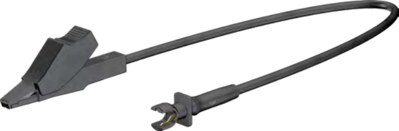

Reference lead, 68.9444-01521, Stäubli Electrical Connectors
Highly flexible reference lead with insulation in silicone. One end with fork-type plug for connecting to the shielded contact on the side of the probe, other end with crocodile clip with allround insulation and toothed gripping jaws with fine-wire clamping surface.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | fork plug, straight | |
| Connection (2) | crocodile clip | |
| Cable length | 0.15 m | |
| Cable cross-section | 0.5 mm² | |
| Colour | black | |
| Material | silicone | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Touch safe | No | |
| Stackable | No |
Download
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
