67.9867-160 | Stäubli Electrical Connectors
Measuring lead with (BNC plug, straight) to (4 mm lamella plug, straight), 1.6 m, black/red, silicone, CAT II, CAT III, 67.9867-160
Order No.: 86F9426
EAN: 4099891762032
MPN:
67.9867-160
XLAM-414/SC/SIL 1,6M
Series: Test & Measurement
This item is no longer available.
As an alternative, we recommend the following item:
Coaxial cable, BNC plug, straight to 4 mm lamella plug, straight, 1.6 m, 66.1052-160
Order No.: 86F0797
Manufacturer: Stäubli Electrical Connectors
per pc. 31.7968 € *
Adapter lead, 67.9867-160, Stäubli Electrical Connectors

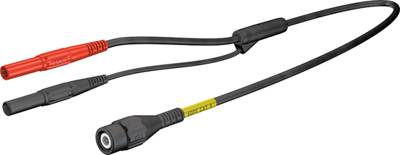

The 67.9867-160 is a highly flexible one end fully shielded adapter lead with coaxial cable with touch-protected BNC male connector, other end with in-line Ø 4 mm MULTILAM plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | BNC plug, straight | |
| Connection (2) | 4 mm lamella plug, straight | |
| Cable length | 1.6 m | |
| Colour | black/red | |
| Material | silicone | |
| Rated category | CAT II, CAT III | |
| Rated Voltage | 1000 V/600 V | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
