67.9842-160 | Stäubli Electrical Connectors
Measuring lead with (BNC plug, straight) to (2 x 4 mm plug, spring-loaded, straight), 1.6 m, black, PVC, CAT III, 67.9842-160
No longer available from manufacturer
Unit Price (€ / pc.)
29.4049 € *
Available: 8 pcs.
Total Price:
29.40 € *
Price list
Quantity
Price per unit*
1 pcs.
29.4049 €
5 pcs.
27.9412 €
10 pcs.
26.4656 €
50 pcs.
25.0019 €
100 pcs.
23.5382 €
*incl. VAT plus shipping costs
Subject to prior sale

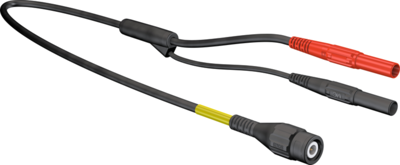

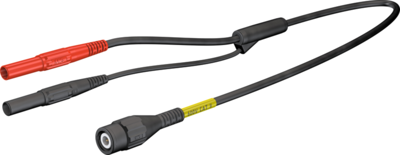

Adapter lead, 67.9842-160, Stäubli Electrical Connectors
Highly flexible, fully shielded adapter leads. One end with coaxial cable with touch-protected BNC male connector, other end with in-line Ø 4 mm MULTILAM plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | 2 x 4 mm plug, spring-loaded, straight | |
| Material | PVC | |
| Cable length | 1.6 m | |
| Rated Voltage | 600 V | |
| Touch safe | Yes | |
| Rated category | CAT III | |
| Stackable | No | |
| Connection (1) | BNC plug, straight | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
