66.9795-250 | Stäubli Electrical Connectors

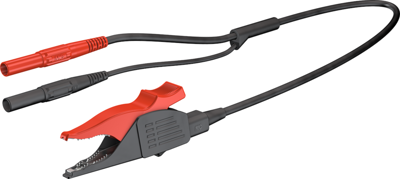

Kelvin measuring lead with (kelvin clamp, straight) to (2 x 4 mm plug, spring-loaded, straight), 2.5 m, black, silicone, 1.0 mm², CAT II, 66.9795-250
Order No.: 86F5268
EAN: 4099891076153
MPN:
66.9795-250
XDK-KELVIN
This item is no longer available.
As an alternative, we recommend the following item:
Kelvin measuring lead with (kelvin clamp, straight) to (4 mm lamella plug, straight), 2.5 m, silicone, 1.0 mm², CAT II, 66.8012-250
Order No.: 86F0948
Manufacturer: Stäubli Electrical Connectors
per pc. 44.2680 € *
Kelvin test lead, 66.9795-250, Stäubli Electrical Connectors
One end with Kelvin dolphin clip with all round insulation, robust, strong-jawed and with surface for fine wire, offering a versatile range of connecting possibilities. The other end with Ø 4 mm MULTILAM plug with rigid insulating sleeve. Highly flexible, silicone-insulated coaxial cable.
XDK-KELVIN Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | kelvin clamp, straight | |
| Connection (2) | 2 x 4 mm plug, spring-loaded, straight | |
| Cable length | 2.5 m | |
| Cable cross-section | 1.0 mm² | |
| Colour | black | |
| Material | silicone | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 1000 V | |
| Rated current | 20 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
