66.9531-15021 | Stäubli Electrical Connectors

Measuring lead with (dolphin clamp) to (dolphin clamp), 1.5 m, black, PVC, 2.5 mm², CAT III, 66.9531-15021

Order No.: 86F9423
EAN: 4099891762001
MPN:
66.9531-15021
XDLS-418 1,5M SCHWARZ
Series: XDLS-418
66.9531-15021 Stäubli Electrical Connectors Test Leads
Image may differ

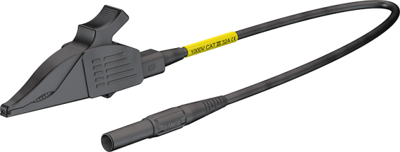

Dolphin clip, 66.9531-15021, Stäubli Electrical Connectors

The 66.9531-15021 is a highly flexible one end dolphin clip with all-round insulation, toothed jaws for wide grip and surface for fine wire. The other end with Ø 4 mm MULTILAM plug with rigid insulating sleeve.

Technical specifications
Filter Property Value
Connection (1) dolphin clamp
Connection (2) dolphin clamp
Cable length 1.5 m
Cable cross-section 2.5 mm²
Colour black
Material PVC
contact surface nickel-plated
Rated category CAT III
Rated Voltage 1000 V
Rated current 32 A
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
