66.9426-15021 | Stäubli Electrical Connectors

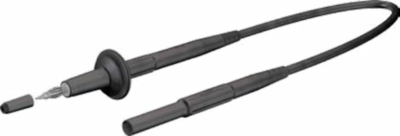

Measuring lead with (test probe, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, black, TPE, 0.5 mm², 66.9426-15021

Order No.: 86F6970

EAN: 4099891078393

MPN:

66.9426-15021

XHL-5000 SCHWARZ

Image may differ

Key Specification:

Connection (1) test probe, straight

Connection (2) 4 mm plug, spring-loaded, straight

Cable length 1.5 m

Cable cross-section 0.5 mm²

Colour black

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Safety measuring lead with (test probe, straight) to (4 mm lamella plug, straight), 1.5 m, black, TPE, 0.5 mm², CAT IV, 66.8011-15021

Order No.: 86F0945

Manufacturer: Stäubli Electrical Connectors

per pc. 15.5652 € *

Go to product

*incl. VAT plus shipping costs

Description

Measuring lead, 66.9426-15021, Stäubli Electrical Connectors

Highly flexible. One end with Ø 4 mm test probe with spring-loaded MULTILAM, the other end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. Supplied with protective cap.

Technical specifications

Filter	Property	Value
	Colour	black
	Connection (1)	test probe, straight
	Rated Voltage	5000 V
	Cable length	1.5 m
	Cable cross-section	0.5 mm²
	Rated current	10 A
	Material	TPE
	Stackable	No
	contact surface	nickel-plated
	Touch safe	Yes
	Connection (2)	4 mm plug, spring-loaded, straight
