66.9408-20024 | Stäubli Electrical Connectors

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, yellow, silicone, 2.5 mm², CAT II, 66.9408-20024

Order No.: 86F8040
EAN: 842640117874
MPN:
66.9408-20024
XZG425/SIL 2,0M GELB

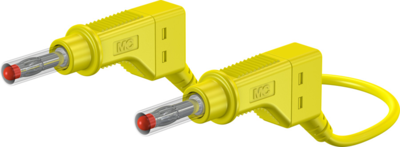

66.9408-20024 Stäubli Electrical Connectors Test Leads Image 1

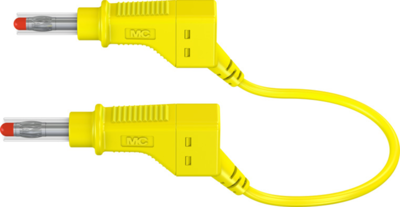

66.9408-20024 Stäubli Electrical Connectors Test Leads Image 2

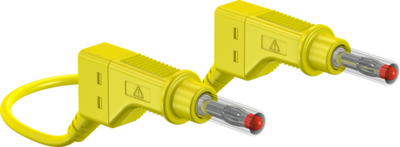

66.9408-20024 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
15.8270 € *
Available: 18 pcs.
Total Price:
15.83 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8270 €
25 pcs.
14.6370 €
50 pcs.
13.4470 €
100 pcs.
12.6616 €
500 pcs.
11.8762 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, 66.9408-20024, Stäubli Electrical Connectors

Highly flexible, with insulation insilicone especially suitable for connecting electrical devices not (yet) equipped with safety sockets. With stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve to prevent accidental touching.

Technical specifications
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, straight
Cable length 2 m
Cable cross-section 2.5 mm²
Colour yellow
Material silicone
contact surface nickel-plated
Rated category CAT II
Rated Voltage 600 V
Rated current 32 A
Touch safe Yes
Stackable Yes
Logistics
Customs tariff number 85444290
Original Packaging Bag with 25 pieces
Country of origin DE
Compliance
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
