66.9405-15021 | Stäubli Electrical Connectors

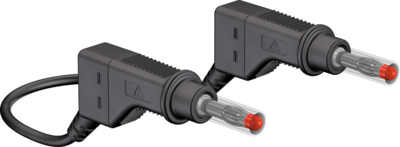

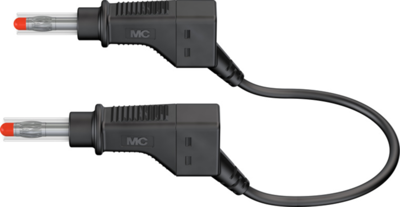

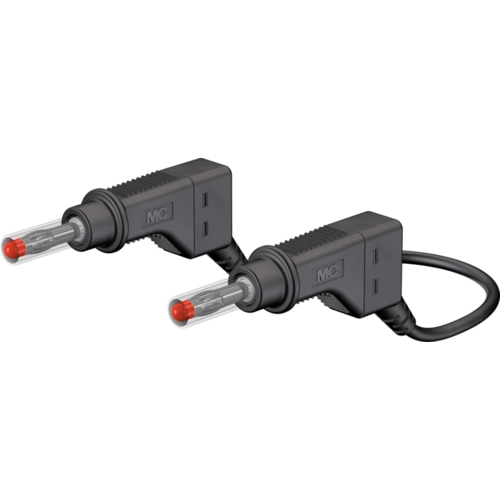

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, black, PVC, 1.0 mm², CAT II, 66.9405-15021
Order No.: 86F9177
EAN: 842640117256
MPN:
66.9405-15021
XZG410 1,50M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
12.6259 € *
Available: 24 pcs.
Total Price:
12.63 € *
Price list
Quantity
Price per unit*
1 pcs.
12.6259 €
25 pcs.
11.6263 €
50 pcs.
10.6862 €
100 pcs.
10.0555 €
500 pcs.
9.4248 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 66.9405-15021, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC especially suitable for connecting electrical devices not (yet) equipped with safety sockets. With stackable Ø 4 mm MULTILAM plugs on both ends with protective collar and retractable sleeve to prevent accidental touching.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Cable length | 1.5 m | |
| Cable cross-section | 1.0 mm² | |
| Colour | black | |
| Material | PVC | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
