66.9395-20021 | Stäubli Electrical Connectors

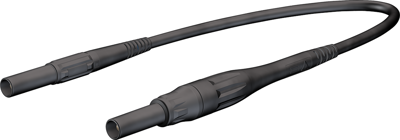

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, black, silicone, 1.0 mm², CAT IV, 66.9395-20021

Order No.: 86F5052

EAN: 4099891075842

MPN:

66.9395-20021

XSMS-419 SCHWARZ 2,0M

66.9395-20021 Stäubli Electrical Connectors Test Leads Image 2

Image may differ

Key Specification:

Connection (1) 4 mm plug, spring-loaded, straight

Connection (2) 4 mm plug, spring-loaded, straight

Cable length 2 m

Cable cross-section 1.0 mm²

Colour black

Ordering Information:

Fuses not included, please order separately

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, black, silicone, 1.0 mm², CAT IV, 66.1047-20021

Order No.: 86F9984

Manufacturer: Stäubli Electrical Connectors

per pc. 15.5890 € *

Go to product

*incl. VAT plus shipping costs

Description

Fused test lead, 66.9395-20021, Stäubli Electrical Connectors

Highly flexible, with insulation in PVC. With in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends. The two-part screw connector accepts a high breaking capacity fuse measuring 6.3x32 mm.The fuse is not supplied.

Technical specifications

Filter	Property	Value
	Connection (1)	4 mm plug, spring-loaded, straight
	Connection (2)	4 mm plug, spring-loaded, straight
	Cable length	2 m
	Cable cross-section	1.0 mm²
	Colour	black
	Material	silicone
	contact surface	nickel-plated
	Rated category	CAT IV
	Rated Voltage	1000 V
	Rated current	8 A
	Touch safe	Yes
	Stackable	No
