66.9012-10023 | Stäubli Electrical Connectors

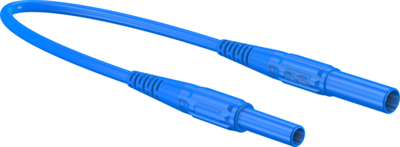

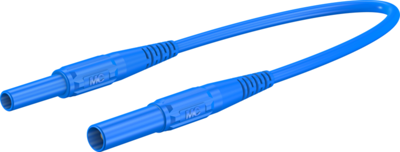

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, blue, silicone, 1.0 mm², CAT III, 66.9012-10023
Order No.: 86F9049
EAN: 4099891083663
MPN:
66.9012-10023
XKS-414 1,00M BLAU
This item is no longer available.
As an alternative, we recommend the following item:

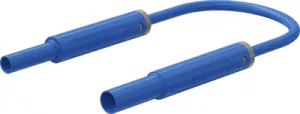

Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 1 m, blue, silicone, 1.0 mm², CAT IV, 66.1045-10023
Order No.: 86F9934
Manufacturer: Stäubli Electrical Connectors
per pc. 5.3788 € *
Extension lead, 66.9012-10023, Stäubli Electrical Connectors
Highly flexible, with insulation in silicone. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Cable length | 1 m | |
| Cable cross-section | 1.0 mm² | |
| Colour | blue | |
| Material | silicone | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 25 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
