66.9006-15022 | Stäubli Electrical Connectors

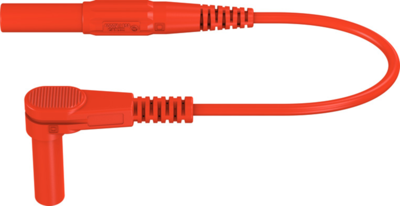

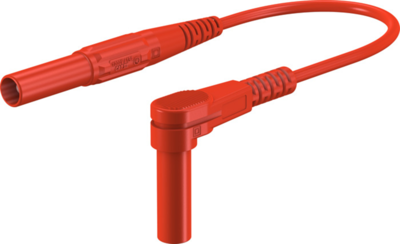

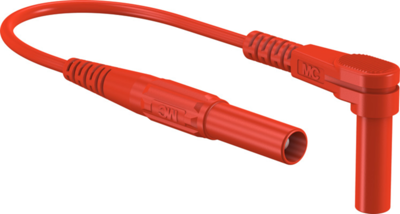

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 1.5 m, red, silicone, 1.0 mm², CAT III, 66.9006-15022
Order No.: 86F9114
EAN: 4099891084233
MPN:
66.9006-15022
XMS-484 1,50M ROT
Series: Test & Measurement
No longer available from manufacturer
Unit Price (€ / pc.)
8.3657 € *
Available: 8 pcs.
Total Price:
8.37 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3657 €
25 pcs.
7.6874 €
50 pcs.
7.2352 €
100 pcs.
6.7949 €
500 pcs.
6.3308 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 66.9006-15022, Stäubli Electrical Connectors
Highly flexible, with insulation in silicone. One end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. The other end with right-angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, angled | |
| Cable length | 1.5 m | |
| Cable cross-section | 1.0 mm² | |
| Colour | red | |
| Material | silicone | |
| contact surface | nickel-plated | |
| Rated category | CAT III | |
| Rated Voltage | 1000 V | |
| Rated current | 19 A | |
| Touch safe | Yes | |
| Stackable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
