66.9005-20024 | Stäubli Electrical Connectors

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, angled), 2 m, yellow, PVC, 1.0 mm², CAT III, 66.9005-20024

Order No.: 86F9089
EAN: 4099891083984
MPN:
66.9005-20024
XMF-484 2,0M GELB

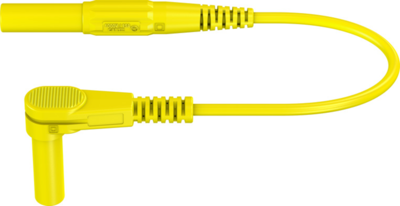

66.9005-20024 Stäubli Electrical Connectors Test Leads Image 1

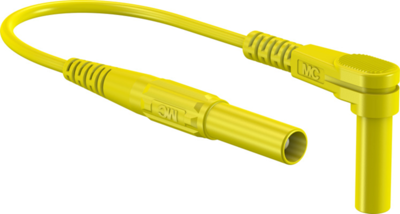

66.9005-20024 Stäubli Electrical Connectors Test Leads Image 2

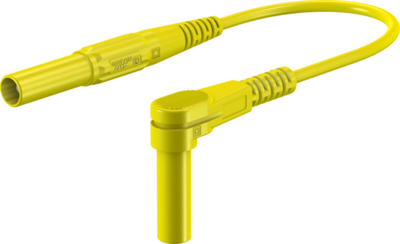

66.9005-20024 Stäubli Electrical Connectors Test Leads Image 3
Image may differ

No longer available from manufacturer

Unit Price (€ / pc.)
6.7830 € *
Available: 24 pcs.
Total Price:
6.78 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7830 €
25 pcs.
6.4022 €
50 pcs.
6.0333 €
100 pcs.
5.6525 €
500 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, 66.9005-20024, Stäubli Electrical Connectors

Highly flexible, with insulation in PVC. One end with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve. The other end with right-angled Ø 4 mm MULTILAM plug with rigid insulating sleeve.

Technical specifications
Filter Property Value
Connection (1) 4 mm plug, spring-loaded, straight
Connection (2) 4 mm plug, spring-loaded, angled
Cable length 2 m
Cable cross-section 1.0 mm²
Colour yellow
Material PVC
contact surface nickel-plated
Rated category CAT III
Rated Voltage 1000 V
Rated current 19 A
Touch safe Yes
Stackable No
Logistics
Property Value
Customs tariff number 85444290
Original Packaging Bag with 25 pieces
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
