66.8010-15022 | Stäubli Electrical Connectors

Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, red, TPE, 0.5 mm², CAT IV, 66.8010-15022

Order No.: 86F0943
EAN: 4099891973650
MPN:
66.8010-15022
SAK-4N-T05-5KV 1,5 M ROT

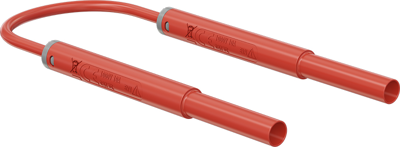

66.8010-15022 Stäubli Electrical Connectors Test Leads Image 1

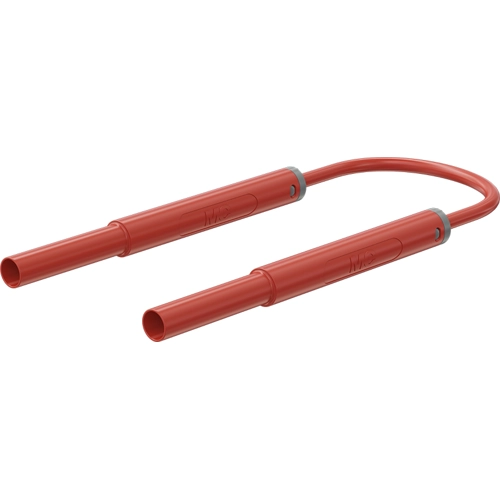

66.8010-15022 Stäubli Electrical Connectors Test Leads Image 2

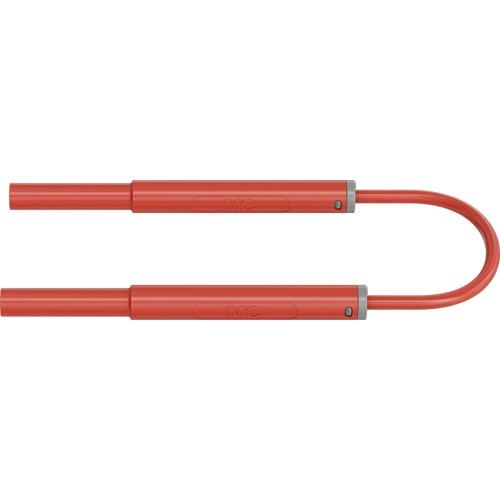

66.8010-15022 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
9.8532 € *
Next delivery: 10 pcs. on 2025-08-13
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
9.2939 €
50 pcs.
8.7346 €
100 pcs.
8.1753 €
250 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale

Safety measuring cable, 66.8010-15022, Stäubli Electrical Connectors

Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.

Technical specifications
Filter Property Value
Rated current 10 A
Connection (1) 4 mm lamella plug, straight
Material TPE
Connection (2) 4 mm lamella plug, straight
Colour red
Rated category CAT IV
Cable cross-section 0.5 mm²
Rated Voltage 1000 V
Stackable No
contact surface nickel-plated
Cable length 1.5 m
Logistics
Property Value
Customs tariff number 85444290
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
