66.8010-15021 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, black, TPE, 0.5 mm², CAT IV, 66.8010-15021
Order No.: 86F0942
EAN: 4099891973643
MPN:
66.8010-15021
SAK-4N-T05-5KV 1,5 M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
9.8532 € *
Available: 15 pcs.
Total Price:
9.85 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8532 €
10 pcs.
9.2939 €
50 pcs.
8.7346 €
100 pcs.
8.1753 €
250 pcs.
7.6041 €
*incl. VAT plus shipping costs
Subject to prior sale

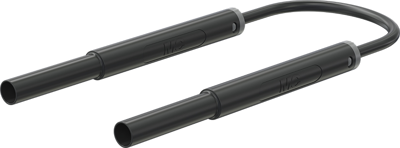

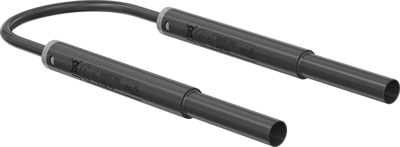

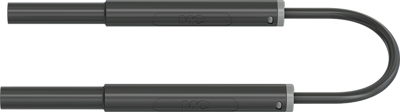

Safety measuring cable, 66.8010-15021, Stäubli Electrical Connectors
Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 1.5 m | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated Voltage | 1000 V | |
| Stackable | No | |
| Rated category | CAT IV | |
| Connection (2) | 4 mm lamella plug, straight | |
| Material | TPE | |
| Rated current | 10 A | |
| Colour | black | |
| Cable cross-section | 0.5 mm² | |
| contact surface | nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
