66.1045-10025 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 1 m, green, silicone, 1.0 mm², CAT IV, 66.1045-10025
Order No.: 86F9936
EAN: 4099891969769
MPN:
66.1045-10025
SAF-4N-S10 1M GRÜN
Series: Test & Measurement
Unit Price (€ / pc.)
6.7235 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.72 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7235 €
25 pcs.
6.3427 €
50 pcs.
5.9500 €
100 pcs.
5.5692 €
250 pcs.
5.1884 €
*incl. VAT plus shipping costs
Subject to prior sale
Safety extension cable, 66.1045-10025, Stäubli Electrical Connectors

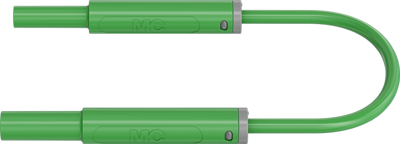

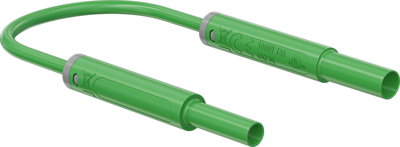

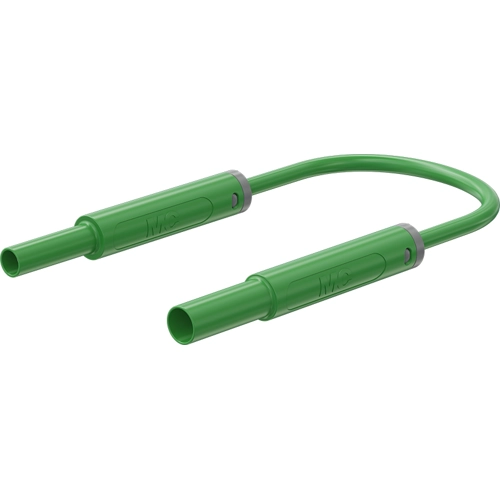

Highly flexible. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Rated current | 19 A | |
| Rated category | CAT IV | |
| Rated Voltage | 1000 V | |
| Cable cross-section | 1.0 mm² | |
| Cable length | 1 m | |
| Connection (2) | 4 mm socket, straight | |
| contact surface | nickel-plated | |
| Colour | green | |
| Material | silicone | |
| Stackable | No | |
| Connection (1) | 4 mm lamella plug, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
