66.1044-05024 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm socket, straight), 0.5 m, yellow, PVC, 1.0 mm², CAT IV, 66.1044-05024
Order No.: 86F9905
EAN: 4099891969455
MPN:
66.1044-05024
SAF-4N-F10 0,5 M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
4.3911 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.39 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3911 €
25 pcs.
4.1412 €
50 pcs.
3.8913 €
100 pcs.
3.6414 €
250 pcs.
3.3915 €
*incl. VAT plus shipping costs
Subject to prior sale

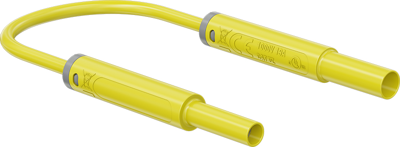

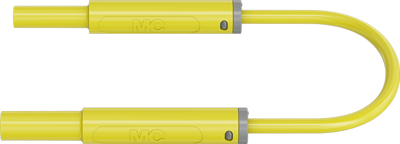

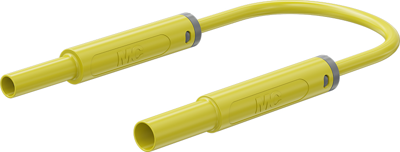

Safety extension cable, 66.1044-05024, Stäubli Electrical Connectors
Highly flexible. One end with Ø 4 mm MULTILAM plug with rigid insulating sleeve, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | 4 mm socket, straight | |
| Material | PVC | |
| contact surface | nickel-plated | |
| Cable length | 0.5 m | |
| Rated Voltage | 1000 V | |
| Rated category | CAT IV | |
| Stackable | No | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 19 A | |
| Colour | yellow | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
