66.1043-20025 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, green, silicone, 2.5 mm², CAT IV, 66.1043-20025
Order No.: 86F9899
EAN: 4099891969394
MPN:
66.1043-20025
SAK-4N-S25 2 M GRÜN
Series: Test & Measurement
Unit Price (€ / pc.)
7.9968 € *
Next delivery: 23 pcs. on 2025-07-07
Total Price:
8.00 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9968 €
25 pcs.
7.5446 €
50 pcs.
7.0805 €
100 pcs.
6.6283 €
250 pcs.
6.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

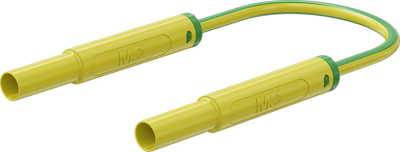

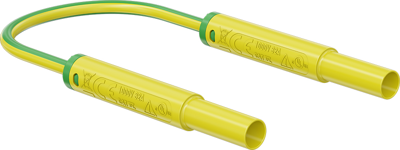

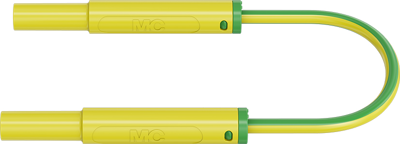

Safety measuring cable, 66.1043-20025, Stäubli Electrical Connectors
Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
Technical specifications
| Rated category | CAT IV | |
| Cable cross-section | 2.5 mm² | |
| Stackable | No | |
| Connection (2) | 4 mm lamella plug, straight | |
| contact surface | nickel-plated | |
| Colour | green | |
| Rated current | 32 A | |
| Cable length | 2 m | |
| Rated Voltage | 1000 V | |
| Material | silicone | |
| Connection (1) | 4 mm lamella plug, straight |
Download
Logistics
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
