66.1042-20024 | Stäubli Electrical Connectors
Safety measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, yellow, PVC, 2.5 mm², CAT IV, 66.1042-20024
Order No.: 86F9868
EAN: 4099891969080
MPN:
66.1042-20024
SAK-4N-F25 2 M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
8.0206 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
8.02 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0206 €
25 pcs.
7.5565 €
50 pcs.
7.1043 €
100 pcs.
6.6521 €
250 pcs.
6.1880 €
*incl. VAT plus shipping costs
Subject to prior sale

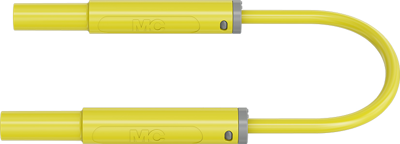

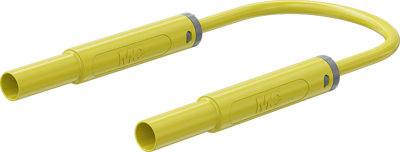

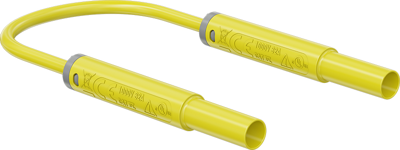

Safety measuring cable, 66.1042-20024, Stäubli Electrical Connectors
Highly flexible, with in-line Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | 4 mm lamella plug, straight | |
| Material | PVC | |
| contact surface | nickel-plated | |
| Cable length | 2 m | |
| Rated Voltage | 1000 V | |
| Rated category | CAT IV | |
| Stackable | No | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 32 A | |
| Colour | yellow | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
