65.9180-10021 | Stäubli Electrical Connectors
Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 1 m, black, silicone, 0.5 mm², CAT II, 65.9180-10021
Order No.: 86F8784
EAN: 4099891083069
MPN:
65.9180-10021
SLK205-K/SIL 1,00M SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 1 m, black, PVC, 0.5 mm², CAT II, 65.9179-10021
Order No.: 86F204
Manufacturer: Stäubli Electrical Connectors
per pc. 7.7112 € *
Measuring lead, 65.9180-10021, Stäubli Electrical Connectors

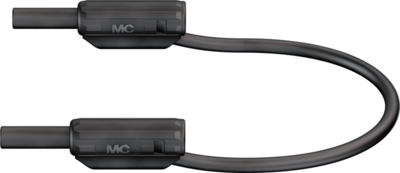

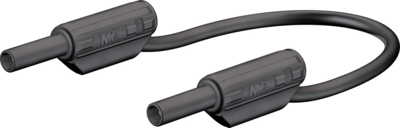

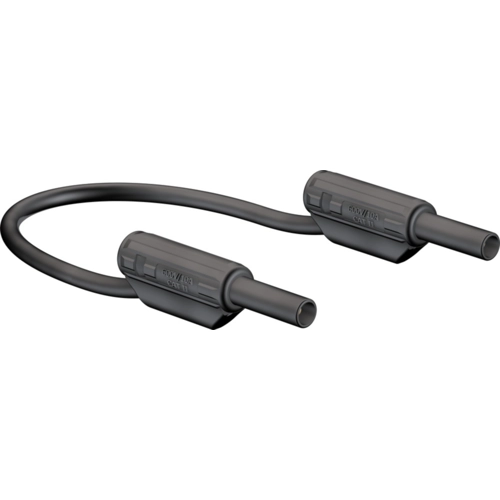

Highly flexible, with silicone insulation, both sides with mounted, stackable Ø 2 mm lamella plug with rigid insulation sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (1) | 2 mm plug, spring-loaded, straight | |
| Connection (2) | 2 mm plug, spring-loaded, straight | |
| Cable length | 1 m | |
| Cable cross-section | 0.5 mm² | |
| Colour | black | |
| Material | silicone | |
| contact surface | gold-plated | |
| Rated category | CAT II | |
| Rated Voltage | 600 V | |
| Rated current | 10 A | |
| Touch safe | Yes | |
| Stackable | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Original Packaging | Bag with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
