64.9289-20021 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, black, PVC, 0.75 mm², 64.9289-20021
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.02 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0218 €
25 pcs.
4.6053 €
50 pcs.
4.3316 €
100 pcs.
4.0460 €
500 pcs.
3.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test lead, 64.9289-20021, Stäubli Electrical Connectors

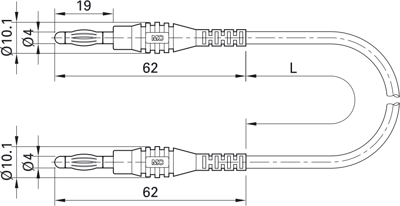

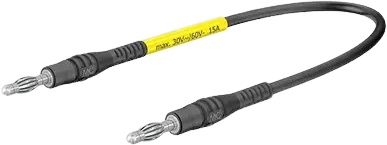

The 64.9289-20021 is a highly flexible test lead with in-line Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Connection (1) | 4 mm lamella plug, straight | |
| Connection (2) | 4 mm lamella plug, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 15 A | |
| Touch safe | No | |
| Colour | black | |
| Cable length | 2 m | |
| contact surface | nickel-plated | |
| Cable cross-section | 0.75 mm² | |
| Material | PVC | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
