64.1071-10029 | Stäubli Electrical Connectors

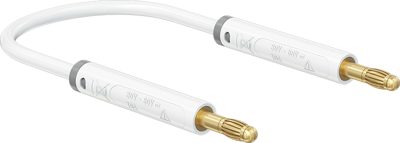

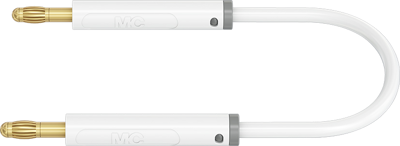

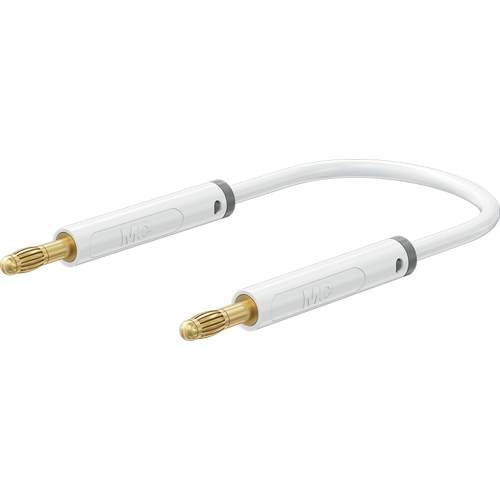

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, white, PVC, 1.0 mm², 64.1071-10029
Order No.: 86F9764
EAN: 4099891967055
MPN:
64.1071-10029
AK-4A-F10 1M WEISS
Series: Test & Measurement
Unit Price (€ / pc.)
5.8310 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8310 €
25 pcs.
5.3669 €
50 pcs.
5.0456 €
100 pcs.
4.7362 €
250 pcs.
4.4149 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring cable, 64.1071-10029, Stäubli Electrical Connectors
Highly flexible with in-line Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Cable length | 1 m | |
| Colour | white | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0 mm² | |
| Stackable | No | |
| Connection (2) | 4 mm lamella plug, straight | |
| Material | PVC | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 19 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
