64.1071-05029 | Stäubli Electrical Connectors

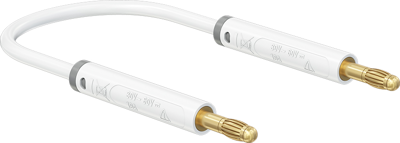

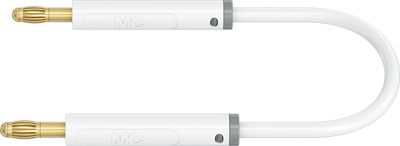

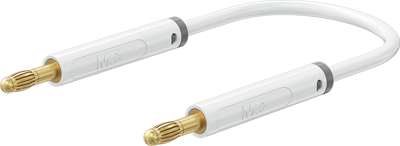

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 0.5 m, white, PVC, 1.0 mm², 64.1071-05029
Order No.: 86F9754
EAN: 4099891966959
MPN:
64.1071-05029
AK-4A-F10 0,5 M WEISS
Series: Test & Measurement
Unit Price (€ / pc.)
6.5569 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.56 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5569 €
25 pcs.
6.0452 €
50 pcs.
5.6882 €
100 pcs.
5.3312 €
250 pcs.
4.9742 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring cable, 64.1071-05029, Stäubli Electrical Connectors
Highly flexible with in-line Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | 4 mm lamella plug, straight | |
| Material | PVC | |
| contact surface | gold-plated | |
| Cable length | 0.5 m | |
| Rated Voltage | 30 VAC/60 VDC | |
| Stackable | No | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 19 A | |
| Colour | white | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
