64.1070-10024 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, yellow, PVC, 1.0 mm², 64.1070-10024
Order No.: 86F9738
EAN: 4099891966799
MPN:
64.1070-10024
AK-4N-F10 1M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
4.1055 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.11 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1055 €
25 pcs.
3.7723 €
50 pcs.
3.5462 €
100 pcs.
3.3201 €
250 pcs.
3.1059 €
*incl. VAT plus shipping costs
**Subject to prior sale
Measuring cable, 64.1070-10024, Stäubli Electrical Connectors

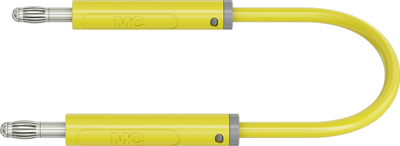

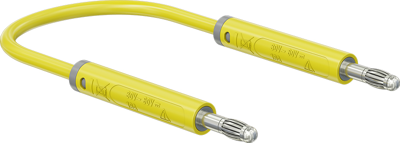

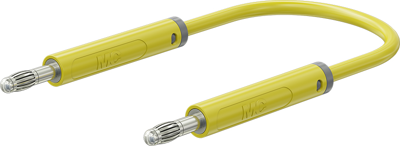

Highly flexible with in-line Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Cable length | 1 m | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Stackable | No | |
| Connection (2) | 4 mm lamella plug, straight | |
| Material | PVC | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 19 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
