64.1070-10021 | Stäubli Electrical Connectors
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, black, PVC, 1.0 mm², 64.1070-10021
Order No.: 86F9735
EAN: 4099891966768
MPN:
64.1070-10021
AK-4N-F10 1M SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
4.3078 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
4.31 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3078 €
25 pcs.
3.9627 €
50 pcs.
3.7247 €
100 pcs.
3.4867 €
250 pcs.
3.2606 €
*incl. VAT plus shipping costs
Subject to prior sale

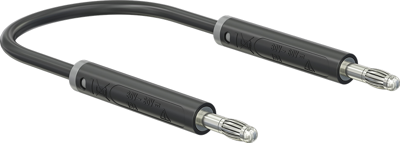

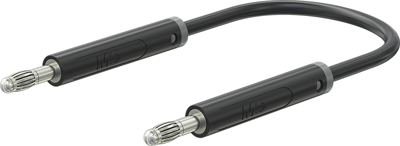

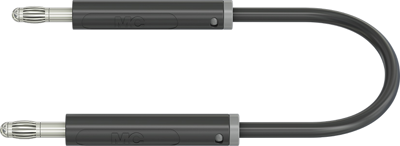

Measuring cable, 64.1070-10021, Stäubli Electrical Connectors
Highly flexible with in-line Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Rated current | 19 A | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 1.0 mm² | |
| Cable length | 1 m | |
| Connection (2) | 4 mm lamella plug, straight | |
| contact surface | nickel-plated | |
| Colour | black | |
| Material | PVC | |
| Stackable | No | |
| Connection (1) | 4 mm lamella plug, straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
