64.1037-07524 | Stäubli Electrical Connectors

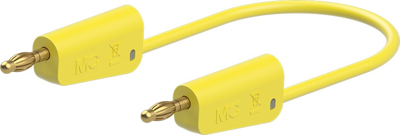

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 750 mm, yellow, silicone, 2.5 mm², 64.1037-07524
Order No.: 86F2444
EAN: 4255674603248
MPN:
64.1037-07524
LK-4A-S25 0,75M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
8.6037 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
8.60 € *
Price list
Quantity
Price per unit*
1 pcs.
8.6037 €
10 pcs.
7.9016 €
50 pcs.
7.4494 €
100 pcs.
6.9615 €
500 pcs.
6.4974 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 641037-07524, Stäubli Electrical Connectors
Highly flexible, with insulation silicone with stackable Ø 4 mm MULTILAM plugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | silicone | |
| Stackable | Yes | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Connection (2) | 4 mm lamella plug, straight | |
| Connection (1) | 4 mm lamella plug, straight | |
| Colour | yellow | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 32 A | |
| Cable length | 750 mm | |
| Rated Voltage | 30 VAC/60 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
