64.1037-02524 | Stäubli Electrical Connectors

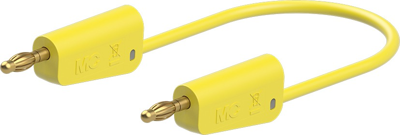

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 250 mm, yellow, silicone, 2.5 mm², 64.1037-02524
Order No.: 86F2424
EAN: 4255674603040
MPN:
64.1037-02524
LK-4A-S25 0,25M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
7.2828 € *
Available: 13 pcs.
Total Price:
7.28 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2828 €
10 pcs.
6.6878 €
50 pcs.
6.3070 €
100 pcs.
5.9143 €
500 pcs.
5.5216 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 641037-02524, Stäubli Electrical Connectors
Highly flexible, with insulation silicone with stackable Ø 4 mm MULTILAM plugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 2.5 mm² | |
| Material | silicone | |
| Connection (1) | 4 mm lamella plug, straight | |
| Cable length | 250 mm | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Colour | yellow | |
| Stackable | Yes | |
| Rated current | 32 A | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (2) | 4 mm lamella plug, straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Customs tariff number | 85444290 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
