64.1033-05024 | Stäubli Electrical Connectors

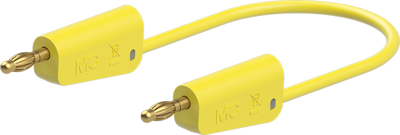

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 500 mm, yellow, silicone, 1.0 mm², 64.1033-05024
Order No.: 86F2194
EAN: 4255674601947
MPN:
64.1033-05024
LK-4A-S10 0,5M GELB
Series: Test & Measurement
Unit Price (€ / pc.)
7.4137 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
7.41 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4137 €
10 pcs.
6.8068 €
50 pcs.
6.4141 €
100 pcs.
5.9976 €
500 pcs.
5.5930 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 641033-05024, Stäubli Electrical Connectors
Highly flexible, with insulation silicone with stackable Ø 4 mm MULTILAM plugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 19 A | |
| Connection (2) | 4 mm lamella plug, straight | |
| Stackable | Yes | |
| Cable length | 500 mm | |
| Connection (1) | 4 mm lamella plug, straight | |
| Cable cross-section | 1.0 mm² | |
| contact surface | gold-plated | |
| Rated Voltage | 30 VAC/60 VDC | |
| Material | silicone | |
| Touch safe | No | |
| Colour | yellow |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bag with 10 pieces |
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
