64.1031-10028 | Stäubli Electrical Connectors

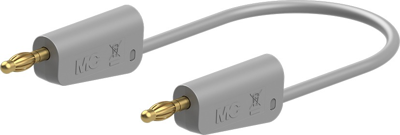

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1 m, gray, PVC, 1.0 mm², 64.1031-10028
Order No.: 86F2098
EAN: 4255674601589
MPN:
64.1031-10028
LK-4A-F10 1,0M GRAU
Series: Test & Measurement
Unit Price (€ / pc.)
6.5093 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.9857 €
50 pcs.
5.6406 €
100 pcs.
5.2836 €
500 pcs.
4.9385 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 641031-10028, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC with stackable Ø 4 mm MULTILAM plugs.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | gold-plated | |
| Connection (2) | 4 mm lamella plug, straight | |
| Colour | gray | |
| Cable length | 1 m | |
| Stackable | Yes | |
| Material | PVC | |
| Rated current | 19 A | |
| Connection (1) | 4 mm lamella plug, straight | |
| Touch safe | No | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
