64.1030-07520 | Stäubli Electrical Connectors

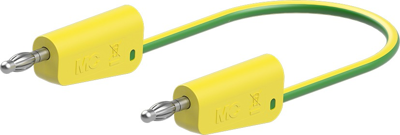

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 750 mm, green/yellow, PVC, 1.0 mm², 64.1030-07520
Order No.: 86F2020
EAN: 4255674600209
MPN:
64.1030-07520
LK-4N-F10 0,75M GRÜN/GELB
Series: Test & Measurement
Unit Price (€ / pc.)
4.0936 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.09 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0936 €
10 pcs.
3.7604 €
50 pcs.
3.5462 €
100 pcs.
3.3201 €
500 pcs.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale
Measuring lead, 641030-07520, Stäubli Electrical Connectors
Highly flexible, with insulation in PVC with stackable Ø 4 mm MULTILAM plugs.
Technical specifications
| Cable length | 750 mm | |
| Colour | green/yellow | |
| contact surface | nickel-plated | |
| Cable cross-section | 1.0 mm² | |
| Stackable | Yes | |
| Connection (2) | 4 mm lamella plug, straight | |
| Touch safe | No | |
| Material | PVC | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (1) | 4 mm lamella plug, straight | |
| Rated current | 19 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
