55.3232-20020 | Stäubli Electrical Connectors

POAG connection cable with (socket, angled) to (open end), 2 m, green/yellow, PVC, 4.0 mm², 55.3232-20020

Order No.: 86F1522
EAN: 4099891641306
MPN:
55.3232-20020
POAG-EC-200/1
Series: Medicalline

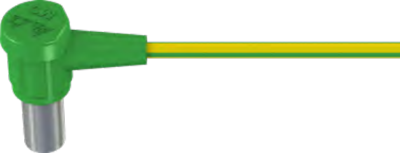

55.3232-20020 Stäubli Electrical Connectors Test Leads Image 1

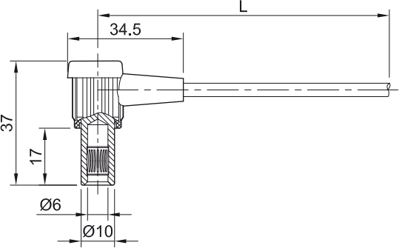

55.3232-20020 Stäubli Electrical Connectors Test Leads Image 2
Image may differ
Unit Price (€ / pc.)
36.8900 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
36.89 € *
Price list
Quantity
Price per unit*
1 pcs.
36.8900 €
5 pcs.
34.6528 €
10 pcs.
32.4275 €
25 pcs.
30.1903 €
50 pcs.
27.9531 €
*incl. VAT plus shipping costs
Subject to prior sale

Connecting lead, 55.3232-20020, Stäubli Electrical Connectors

The 55.3232-20020 is a highly flexible connecting lead with green-yellow insulation for potential equalization. One end with assembled right-angled, spring-loaded socket, other end open lead. Socket made of nickel-plated brass with MULTILAM made of gold-plated, harddrawn copper alloy.

Technical specifications
Filter Property Value
Cable length 2 m
Colour green/yellow
contact surface nickel-plated
Cable cross-section 4.0 mm²
Stackable No
Connection (2) open end
Touch safe No
Material PVC
Connection (1) socket, angled
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
