55.3226-30020 | Stäubli Electrical Connectors

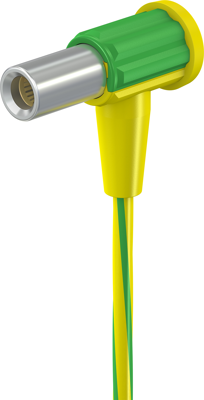

POAG connection cable with (POAG socket, spring-loaded, angled) to (open end), 3 m, green/yellow, PVC, 6.0 mm², 55.3226-30020

Order No.: 86F1506

EAN: 4099891069483

MPN:

55.3226-30020

POAG-HK6/KBT6-EC GRÜN/GELB 3,0M

Series: Medicalline

55.3226-30020 Stäubli Electrical Connectors Test Leads Image 1

55.3226-30020 Stäubli Electrical Connectors Test Leads Image 2

Image may differ

Key Specification:

Connection (1) POAG socket, spring-loaded, angled

Connection (2) open end

Cable length 3 m

Cable cross-section 6.0 mm²

Colour green/yellow

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

POAG connection cable with (socket, angled) to (open end), 3 m, green/yellow, PVC, 6.0 mm², 55.3233-30020

Order No.: 86F1527

Manufacturer: Stäubli Electrical Connectors

per pc. 46.4576 € *

Go to product

*incl. VAT plus shipping costs

Description

Connection lead, 55.3226-30020, Stäubli Electrical Connectors

Highly flexible connection cables with green-yellow insulation for potential equalization. One side with mounted angled socket, other side open cable end. Socket made of nickel-plated brass with MULTILAM made of gold-plated, hard-drawn copper alloy.

Technical specifications

Filter	Property	Value
	Colour	green/yellow
	Connection (1)	POAG socket, spring-loaded, angled
	Cable length	3 m
	Cable cross-section	6.0 mm²
	Material	PVC
	Stackable	No
	contact surface	nickel-plated
	Touch safe	No
	Connection (2)	open end
