55.3221-20020 | Stäubli Electrical Connectors

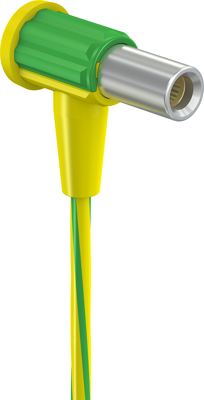

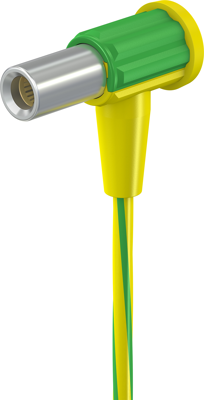

Name: POAG connection cable with (POAG socket, spring-loaded, angled) to (open end), 2 m, green/yellow, PVC, 4.0 mm²
Brand: Stäubli Electrical Connectors
SKU: 86F1501
Availability: OutOfStock

POAG connection cable with (POAG socket, spring-loaded, angled) to (open end), 2 m, green/yellow, PVC, 4.0 mm²

Order No.: 86F1501

EAN: 4099891069438

MPN:

55.3221-20020

POAG-HK4/KBT6-EC GRÜN/GELB 2,0M

Series: POAG-HK

Image may differ

Key Specification:

Connection (1) POAG socket, spring-loaded, angled

Connection (2) open end

Cable length 2 m

Cable cross-section 4.0 mm²

Colour green/yellow

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

POAG connection cable with (socket, angled) to (open end), 2 m, green/yellow, PVC, 4.0 mm²

Order No.: 86F1522

Manufacturer: Stäubli Electrical Connectors

per pc. 20.7893 € *

*incl. VAT plus shipping costs

Description

Connection lead, 55.3221-20020, Stäubli Electrical Connectors

Highly flexible connection cables with green-yellow insulation for potential equalization. One side with mounted angled socket, other side open cable end. Socket made of nickel-plated brass with MULTILAM made of gold-plated, hard-drawn copper alloy.

Technical specifications

	Connection (1)	POAG socket, spring-loaded, angled
	Connection (2)	open end
	Touch safe	No
	Colour	green/yellow
	Cable length	2 m
	contact surface	nickel-plated
	Cable cross-section	4.0 mm²
	Material	PVC
	Stackable	No
