28.0074-10024 | Stäubli Electrical Connectors

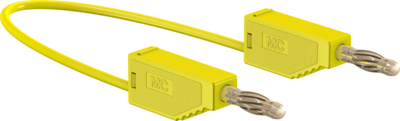

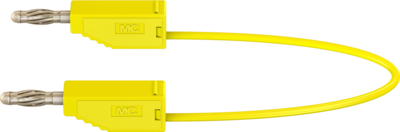

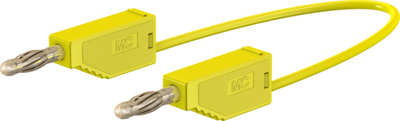

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1 m, yellow, silicone, 2.5 mm², 28.0074-10024
Order No.: 86F8641
EAN: 4099891082406
MPN:
28.0074-10024
LK425-A/SIL 1,0M GELB
Series: Test & Measurement
No longer available from manufacturer - Last time buy manufacturer: 12.31.2022
Unit Price (€ / pc.)
7.0091 € *
Available: 1 pcs.
Measuring lead, 28.0074-10024, Stäubli Electrical Connectors
Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Cable length | 1 m | |
| Colour | yellow | |
| contact surface | gold-plated | |
| Cable cross-section | 2.5 mm² | |
| Stackable | Yes | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Touch safe | No | |
| Material | silicone | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Rated current | 32 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
