28.0074-07525 | Stäubli Electrical Connectors

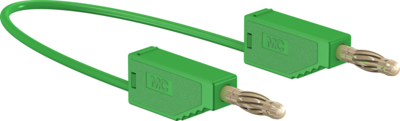

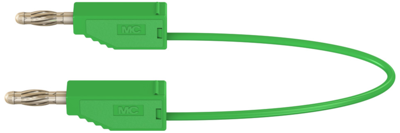

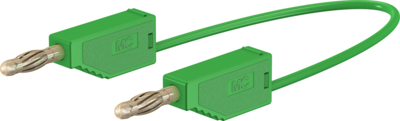

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 750 mm, green, silicone, 2.5 mm², 28.0074-07525
Order No.: 86F8637
EAN: 4099891082390
MPN:
28.0074-07525
LK425-A/SIL 0,75M GRÜN
Series: Test & Measurement
No longer available from manufacturer - Last time buy manufacturer: 12.31.2022
Unit Price (€ / pc.)
6.5212 € *
Available: 7 pcs.
Measuring lead, 28.0074-07525, Stäubli Electrical Connectors
Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Material | silicone | |
| contact surface | gold-plated | |
| Cable length | 750 mm | |
| Rated Voltage | 30 VAC/60 VDC | |
| Touch safe | No | |
| Stackable | Yes | |
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Rated current | 32 A | |
| Colour | green | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 10 pieces |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
