28.0073-20025 | Stäubli Electrical Connectors

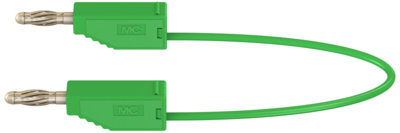

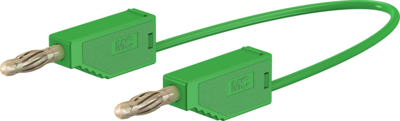

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, green, PVC, 2.5 mm², 28.0073-20025
Order No.: 86F8618
EAN: 4099891082239
MPN:
28.0073-20025
LK425-A 2,0M GRÜN
This item is no longer available.
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, green, PVC, 2.5 mm², 64.1035-20025
Order No.: 86F2355
Manufacturer: Stäubli Electrical Connectors
per pc. 8.4847 € *
Measuring lead, 28.0073-20025, Stäubli Electrical Connectors
Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Cable length | 2 m | |
| Colour | green | |
| contact surface | gold-plated | |
| Cable cross-section | 2.5 mm² | |
| Stackable | Yes | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Touch safe | No | |
| Material | PVC | |
| Rated Voltage | 30 VAC/60 VDC | |
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Rated current | 32 A |
Download
Logistics
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
