28.0073-20024 | Stäubli Electrical Connectors

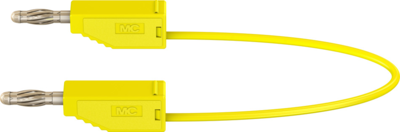

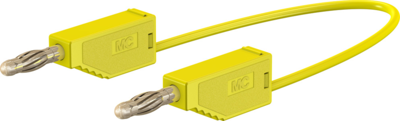

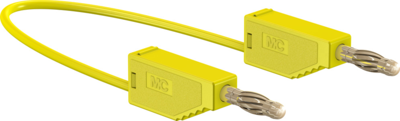

Name: Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, yellow, PVC, 2.5 mm²
Brand: Stäubli Electrical Connectors
SKU: 86F8617
Availability: OutOfStock

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 2 m, yellow, PVC, 2.5 mm²

Order No.: 86F8617

EAN: 4099891082222

MPN:

28.0073-20024

LK425-A 2,0M GELB

Series: LK425-A

Image may differ

Key Specification:

Connection (1) 4 mm plug, spring-loaded, straight

Connection (2) 4 mm plug, spring-loaded, straight

Cable length 2 m

Cable cross-section 2.5 mm²

Colour yellow

Download Datasheet Technical specifications

This item is no longer available.

As an alternative, we recommend the following item:

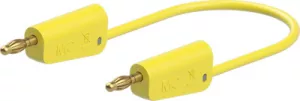

Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 2 m, yellow, PVC, 2.5 mm²

Order No.: 86F2354

Manufacturer: Stäubli Electrical Connectors

per pc. 8.3181 € *

*incl. VAT plus shipping costs

Description

Measuring lead, 28.0073-20024, Stäubli Electrical Connectors

Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.

Technical specifications

	Connection (1)	4 mm plug, spring-loaded, straight
	Connection (2)	4 mm plug, spring-loaded, straight
	Rated Voltage	30 VAC/60 VDC
	Rated current	32 A
	Touch safe	No
	Colour	yellow
	Cable length	2 m
	contact surface	gold-plated
	Cable cross-section	2.5 mm²
	Material	PVC
	Stackable	Yes
