28.0073-07521 | Stäubli Electrical Connectors

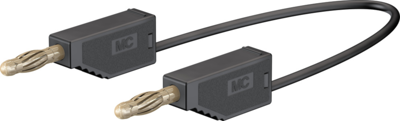

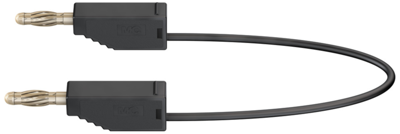

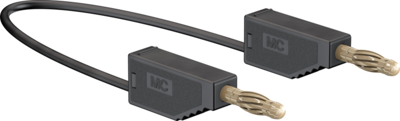

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 750 mm, black, PVC, 2.5 mm², 28.0073-07521
Order No.: 86F8584
EAN: 4099891081959
MPN:
28.0073-07521
LK425-A 0,75M SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 750 mm, black, PVC, 2.5 mm², 64.1035-07521
Order No.: 86F2321
Manufacturer: Stäubli Electrical Connectors
per pc. 6.7235 € *
Measuring lead, 28.0073-07521, Stäubli Electrical Connectors
Highly flexible, with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Cable length | 750 mm | |
| Cable cross-section | 2.5 mm² | |
| Rated current | 32 A | |
| Material | PVC | |
| Stackable | Yes | |
| contact surface | gold-plated | |
| Touch safe | No | |
| Connection (2) | 4 mm plug, spring-loaded, straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85444290 |
| Country of origin | DE |
| Original Packaging | Bag with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
