28.0060-15021 | Stäubli Electrical Connectors

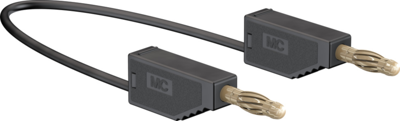

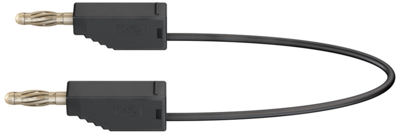

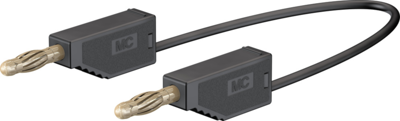

Measuring lead with (4 mm plug, spring-loaded, straight) to (4 mm plug, spring-loaded, straight), 1.5 m, black, PVC, 1.0 mm², CAT O
No longer available from manufacturer, LTB: 12.31.2022
As an alternative, we recommend the following item:
Measuring lead with (4 mm lamella plug, straight) to (4 mm lamella plug, straight), 1.5 m, black, PVC, 1.0 mm²
Order No.: 86F2101
Manufacturer: Stäubli Electrical Connectors
per pc. 6.6997 € *
*incl. VAT plus shipping costs
Measuring lead, 28.0060-15021, Stäubli Electrical Connectors
Highly flexible test lead with insulation in PVC with stackable Ø 4 mm MULTILAM plugs on both ends.
Technical specifications
| Connection (1) | 4 mm plug, spring-loaded, straight | |
| Connection (2) | 4 mm plug, spring-loaded, straight | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A | |
| Touch safe | No | |
| Colour | black | |
| Cable length | 1.5 m | |
| contact surface | gold-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | PVC | |
| Rated category | CAT O | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444290 |
| Original Packaging | Bag with 10 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
