28.0039-01525 | Stäubli Electrical Connectors

Measuring lead with (2 mm plug, spring-loaded, straight) to (2 mm plug, spring-loaded, straight), 150 mm, green, PVC, 0.5 mm², CAT O, 28.0039-01525

Order No.: 86F8266
EAN: 842640105574
MPN:
28.0039-01525
LK205 0,15M GRÜN

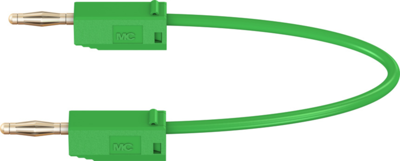

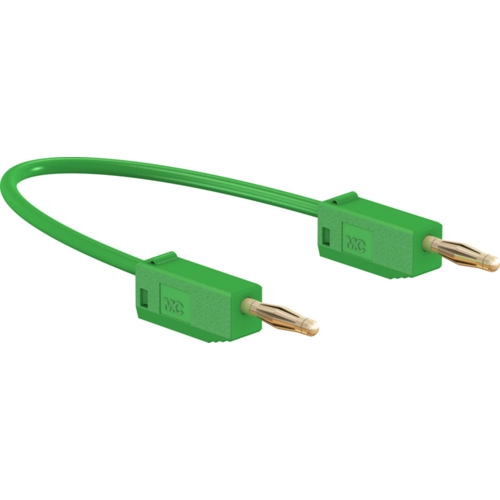

28.0039-01525 Stäubli Electrical Connectors Test Leads Image 1
28.0039-01525 Stäubli Electrical Connectors Test Leads Image 2
28.0039-01525 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
Unit Price (€ / pc.)
4.0103 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
4.01 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0103 €
10 pcs.
3.7009 €
50 pcs.
3.4748 €
100 pcs.
3.2606 €
500 pcs.
3.0345 €
*incl. VAT plus shipping costs
Subject to prior sale

Measuring lead, 28.0039-01525, Stäubli Electrical Connectors

Highly flexible with stackable Ø 2 mm MULTILAM plugs on both ends.

Technical specifications
Filter Property Value
Connection (1) 2 mm plug, spring-loaded, straight
Connection (2) 2 mm plug, spring-loaded, straight
Cable length 150 mm
Cable cross-section 0.5 mm²
Colour green
Material PVC
contact surface gold-plated
Rated category CAT O
Rated Voltage 30 VAC/60 VDC
Rated current 10 A
Touch safe No
Stackable Yes
Logistics
Property Value
Country of origin DE
Original Packaging Bag with 10 pieces
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
