28.0012-01522 | Stäubli Electrical Connectors

Measuring lead with (2 mm plug, spring-loaded, straight) to (4 mm socket, rigid, straight), 150 mm, red, PVC, 0.5 mm², 28.0012-01522

Order No.: 86F8057
EAN: 4099891079260
MPN:
28.0012-01522
AK205/405-BK 0,15M ROT

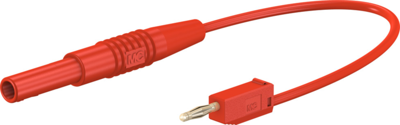

28.0012-01522 Stäubli Electrical Connectors Test Leads Image 1

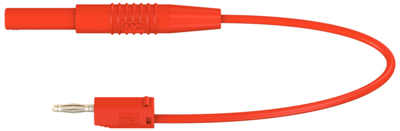

28.0012-01522 Stäubli Electrical Connectors Test Leads Image 2

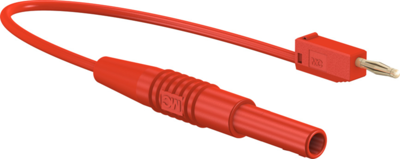

28.0012-01522 Stäubli Electrical Connectors Test Leads Image 3
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

Adapter lead, 28.0012-01522, Stäubli Electrical Connectors

Highly flexible. One end with Ø 2 mm stackable MULTILAM plug, the other end with Ø 4 mm rigid socket with rigid insulating sleeve.

Technical specifications
Filter Property Value
Connection (2) 4 mm socket, rigid, straight
Colour red
Rated current 10 A
Connection (1) 2 mm plug, spring-loaded, straight
Touch safe No
Stackable Yes
contact surface gold-plated
Material PVC
Rated Voltage 30 VAC/60 VDC
Cable cross-section 0.5 mm²
Cable length 150 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85444290
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
