66.9115-22 | Stäubli Electrical Connectors

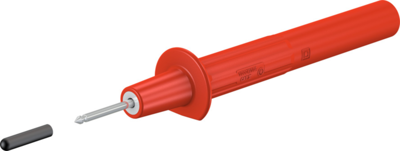

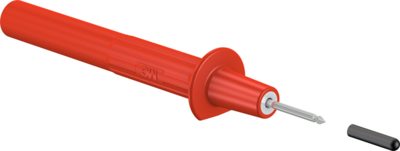

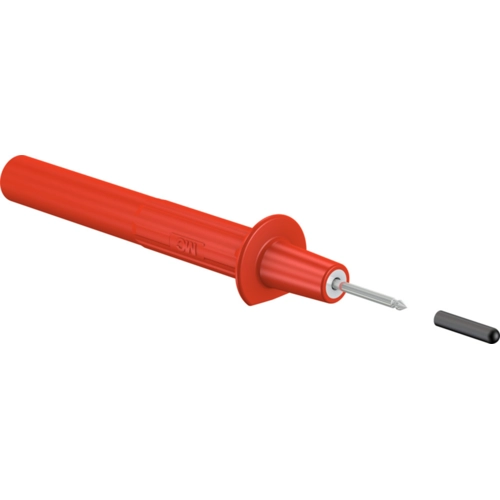

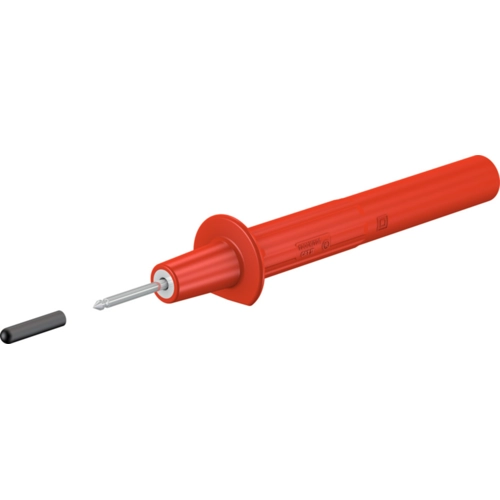

Test probe, socket 4 mm, rigid, 1000 V, CAT II, red, 66.9115-22
Order No.: 86F8041
EAN: 4099891480097
MPN:
66.9115-22
PP-115/2 ROT
This item is no longer available.
As an alternative, we recommend the following item:

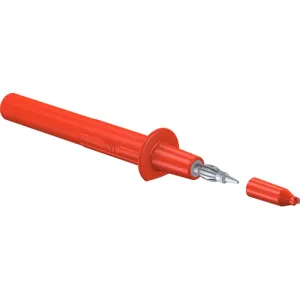

Test probe, socket 4 mm, rigid, 1000 V, CAT II, red, 66.9112-22
Order No.: 35F1608
Manufacturer: Stäubli Electrical Connectors
per pc. 4.7719 € *
Test probe, 66.9115-22, Stäubli Electrical Connectors
Polished Ø 2 mm stainless steel tip. Handle guard flattened on one side to prevent rolling. Also allows for close side-by-side plugging of probes. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated Voltage | 1000 V | |
| Rated category | CAT II | |
| Colour | red | |
| Material Insulation | PA | |
| Contact material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
