64.9205-21 | Stäubli Electrical Connectors
Test probe, socket 4 mm, rigid, 30 V, black, 64.9205-21
Order No.: 86F8727
EAN: 4099891480110
MPN:
64.9205-21
PP-130 SCHWARZ
This item is no longer available.
As an alternative, we recommend the following item:
Test probe, socket 4 mm, rigid, 1 kV, black, 24.0235-21
Order No.: 35F1598
Manufacturer: Stäubli Electrical Connectors
per pc. 5.6525 € *
Test probe, 64.9205-21, Stäubli Electrical Connectors

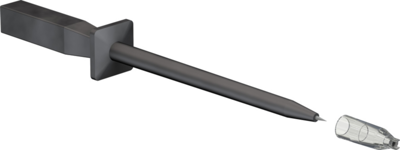

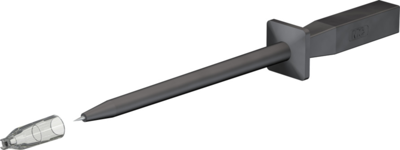

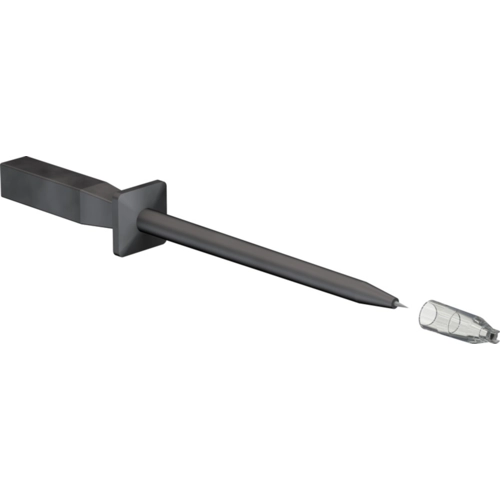

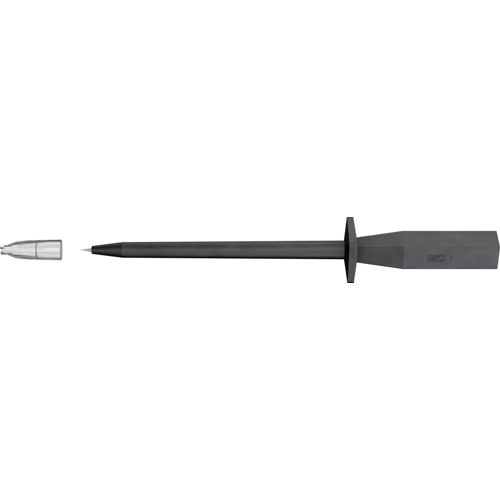

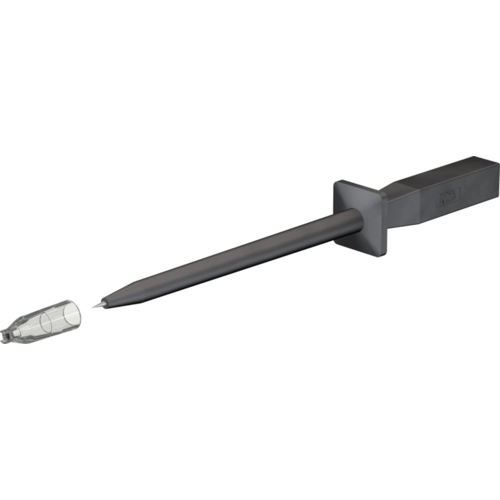

Test probe with stainless steel needle, ground to a sharp point, e.g. for piercing thin insulation and oxide layers. The insulation can be cut back in steps to bare a suitable length of tip. The test probe features an anti-roll finger guard. Ø 4 mm rigid socket in handle. Supplied with protective cap.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | test probe | |
| Connection | socket 4 mm, rigid | |
| Rated voltage | 30 V | |
| Colour | black | |
| Material Insulation | PA | |
| Contact material | stainless steel, nickel-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
