66.9076-23 | Stäubli Electrical Connectors

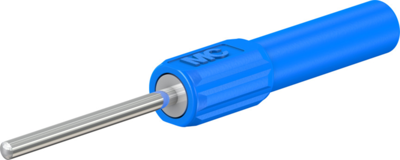

Counting test adapter, connecting pin 2 mm to 4 mm socket, blue, CAT II, 66.9076-23
Unit Price (€ / pc.)
3.2725 € *
Available: 45 pcs.
Total Price:
3.27 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2725 €
10 pcs.
2.8917 €
50 pcs.
2.5228 €
100 pcs.
2.4276 €
500 pcs.
2.2253 €
*incl. VAT plus shipping costs
Subject to prior sale
Adapter for laboratory connector, 66.9076-23, Stäubli Electrical Connectors
Solid round brass pins especially suitable for the screw connection to electricity meter clips. Ø 4 mm rigid socket in insulator, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Available in different pin diameters D and lengths L.
Technical Data
- Version: Connecting pin adapter
- Colour: blue
- Rated voltage: 600 V
- Rated current: 19 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Site (2) | 4 mm socket | |
| contact surface | nickel-plated | |
| Rated Voltage | 600 V | |
| Site (1) | connecting pin 2 mm | |
| Rated category | CAT II | |
| Rated current | 19 A | |
| Colour | blue | |
| Version | counting test adapter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Bag with 50 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
