24.0160-28 | Stäubli Electrical Connectors
Screw-clamping adapter, 4 mm plug, spreadable to 4 mm socket, gray, CAT II, 24.0160-28
Unit Price (€ / pc.)
5.1289 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.13 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1289 €
25 pcs.
4.5220 €
100 pcs.
4.2602 €
500 pcs.
4.1055 €
1000 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale
Adapter, 24.0160-28, Stäubli Electrical Connectors Electrical Connectors

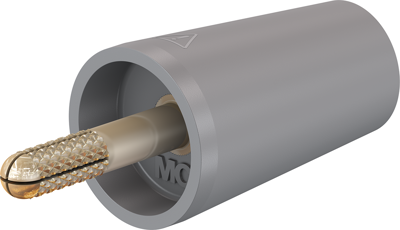

Brass adapter for screwing into Ø 4 mm sockets. By tightening an internal screw, the Ø 4 mm plug of this adapter expands so that it is firmly seated in the socket and offers full protection against accidental contact when mounted. Rigid Ø 4 mm socket in the insulating body, suitable for receiving spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Site (2) | 4 mm socket | |
| contact surface | gold-plated | |
| Rated Voltage | 1000 V | |
| Site (1) | 4 mm plug, spreadable | |
| Rated category | CAT II | |
| Rated current | 32 A | |
| Colour | gray | |
| Version | screw-clamping adapter |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Original Packaging | Bag with 25 pieces |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
