24.0116-22 | Stäubli Electrical Connectors

Laboratory adapter with sliding sleeve, 4 mm plug to 4 mm socket, red, CAT II, 24.0116-22

Order No.: 86F467
EAN: 842640104515
MPN:
24.0116-22
A4/4-Z ROT

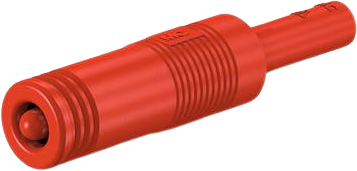

24.0116-22 Stäubli Electrical Connectors T&M Adapters Image 1

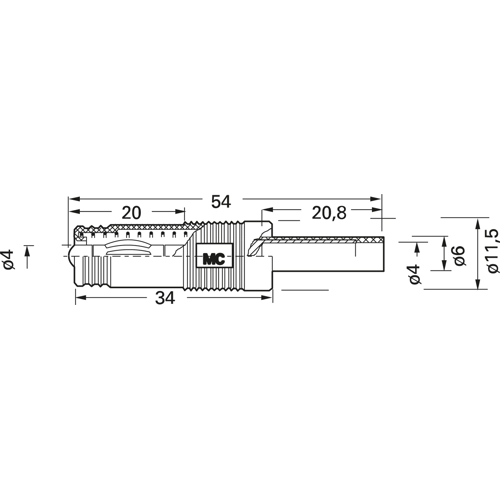

24.0116-22 Stäubli Electrical Connectors T&M Adapters Image 2
Image may differ
Unit Price (€ / pc.)
4.2840 € *
Available: 54 pcs.
Total Price:
4.28 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2840 €
25 pcs.
3.7723 €
100 pcs.
3.3201 €
500 pcs.
3.1773 €
1000 pcs.
2.9750 €
*incl. VAT plus shipping costs
Subject to prior sale

Transition plug connector, 24.0116-22, Stäubli Electrical Connectors

Transition plug connector Ø 4 mm plug, made of brass, with spring-loaded MULTILAM and retractable sleeve to prevent accidental contact. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
Rated category CAT II
Site (1) 4 mm plug
Site (2) 4 mm socket
contact surface nickel-plated
Colour red
Rated current 25 A
Rated Voltage 30 VAC/60 VDC
Version laboratory adapter with sliding sleeve
Logistics
Customs tariff number 85369010
Country of origin CH
Compliance
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
