24.0110 | Stäubli Electrical Connectors
Reducer adapter, 4 mm plug to 2 mm socket, CAT II, 24.0110
Unit Price (€ / pc.)
2.7132 € *
Next delivery: 96 pcs. on 2026-06-03
Total Price:
2.71 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7132 €
10 pcs.
2.3205 €
100 pcs.
2.1301 €
500 pcs.
2.0349 €
1000 pcs.
1.8326 €
*incl. VAT plus shipping costs
Subject to prior sale
Reducer adapter, 24.0110, Stäubli Electrical Connectors

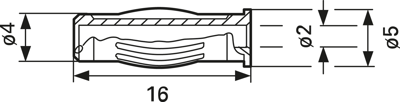

Uninsulated, Ø 4 mm plug, made of brass, with spring-loaded MULTILAM. Ø 2 mm rigid socket, accepting spring-loaded Ø 2 mm plugs (pluggable on both sides).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | reducer adapter | |
| Site (1) | 4 mm plug | |
| Site (2) | 2 mm socket | |
| contact surface | gold-plated | |
| Rated category | CAT II | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
